Description

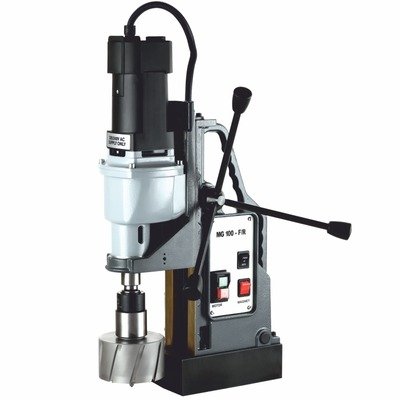

MG 100/4 FR (360 Degree Swivel) 4 Speed Magnetic Drilling And Tapping Machine
| TECHNICAL SPECIFICATIONS | MG 100/4 FR(Swivel) |
| Annular Cutters | 12-100 mm |
| Cutting Depth | 200 mm |
| Twist Drills | 31.75mm |
| Countersinking | 10-55 mm |
| Reaming | 2-26mm |
| Tapping | M30 |
| Motor Power | 1800 watt |
| Magnetic force | 28000N |
| No Load Speed | 220/350/460/700 rpm |
| Load Speed | 110/185/250/400 rpm |
| Overload Protection | YES |
| Electronic speed Regulation | YES |
| FRICTION CLUTCH | YES |
| SOFT START | YES |
| SLIDE MECHANISM | DRSS |
| Stroke | 300 mm |
| Length | 340 mm |
| Width | 260 mm |
| Height | 480 -710 mm |
| Magnet (LXWXH) | 212x100x65 mm |
| Spindle | MT 3 |
| Power Source | 220-240V |
| Weight | 26 kg |
| Swivel Base | Swivel 360 degrees |
