HSS Cutter Ultra Premium 75mm Cutting Depth

The proven Triple-cut geometry ensures smooth and simple machining in almost all steel types. Combine extreme hardness and durability with a wide range of possible applications

Product Code:

Brand: Ojasvi Broach Cutters

Application: Drilling

Get A Quote Enquire Now

Description

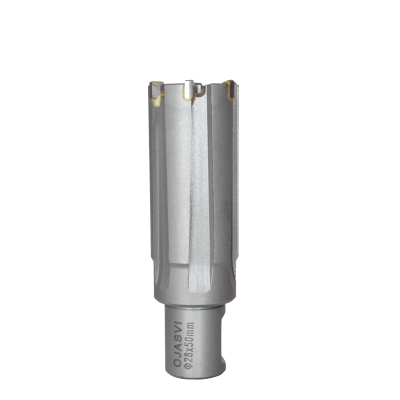

HSS Cutter Ultra Premium annular Cutter with Weldon & universal Shank

Dia. (mm)	Shank Dia (mm)	Cutting Depth (mm)
12	19.05	25/50
13	19.05	25/50
14	19.05	25/50/75/100
15	19.05	25/50/75/100
16	19.05	25/50/75/100
17	19.05	25/50/75/100
18	19.05	25/50/75/100
19	19.05	25/50/75/100
20	19.05	25/50/75/100
21	19.05	25/50/75/100
22	19.05	25/50/75/100
23	19.05	25/50/75/100

Dia. (mm)	Shank Dia (mm)	Cutting Depth (mm)
24	19.05	25/50/75/100
25	19.05	25/50/75/100
26	19.05	25/50/75/100
27	19.05	25/50/75/100
28	19.05	25/50/75/100
29	19.05	25/50/75/100
30	19.05	25/50/75/100
31	19.05	25/50/75/100
32	19.05	25/50/75/100
33	19.05	25/50/75/100
34	19.05	25/50/75/100
35	19.05	25/50/75/100

Dia. (mm)	Shank Dia (mm)	Cutting Depth (mm)
36	19.05	25/50/75/100
37	19.05	25/50/75/100
38	19.05	25/50/75/100
39	19.05	25/50/75/100
40	19.05	25/50/75/100
41	19.05	25/50/75/100
42	19.05	25/50/75/100
43	19.05	25/50/75/100
44	19.05	25/50/75/100
45	19.05	25/50/75/100
46	19.05	25/50/75/100
47	19.05	25/50/75/100

Dia. (mm)	Shank Dia (mm)	Cutting Depth (mm)
48	19.05	25/50/75/100
49	19.05	25/50/75/100
50	19.05	25/50/75/100
51	19.05	25/50/75/100
52	19.05	25/50/75/100
53	19.05	25/50/75/100
54	19.05	25/50/75/100
55	19.05	25/50/75/100
56	19.05	25/50/75/100
57	19.05	25/50/75/100
58	19.05	25/50/75/100
59	19.05	25/50/75/100
60	19.05	25/50/75/100
